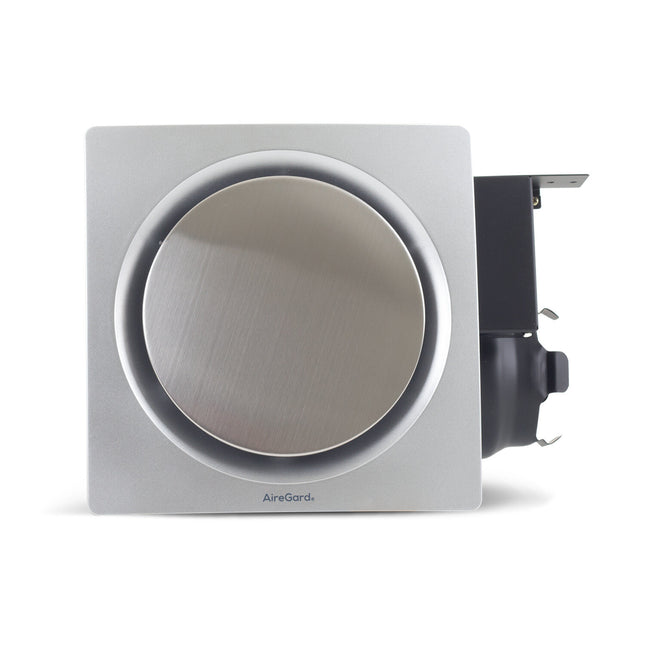

Super Quiet Series – SQ-110-D1Hear almost nothing with the world’s quietest room ventilator with noise level of 20dB. It is the perfect choice for your bedroom.Feature Highlights :RPM – 760
CFM – 110
Power – 30W
Noise – 20dBProduct Technicals :Fan Type – Turbine
Air Speed – Single
Motor Speed (RPM) – 760
Air Flow (CFM) – 110
Power (W) – 30
Noise Level (dB) – 20Dimension:Duct Size – 4 inch/100mm
Panel Size (mm) – 300 x 300
Mounting Size (mm) – 241 x 241
Height (mm) – 216
Weight (kg) – 4.5Panel available in White, Black, Red and Platinum.
-----------------------------
FEATURES
-----------------------------
DC Motor – Energy Saving
Silent Operation
8 Speed Settings with Last Memory
Timer On - 1hr, 3hr, 6hr & 8hr
Auto Oscillation - 105º (Horizontal)
Manual Adjustment - 95º (Horizontal) & 155º (Vertical)
Natural Wind
-----------------------------
SPECIFICATIONS
-----------------------------
Model: KONA 3B/16
Fan Width: 16”
Fan Height: Ceiling Mount (22.6") or Wall Mount (19")
Downrod Length: 7”
Fan Housing: Aluminium & ABS
Blade Material: ABS
Remote Control: RF
Speed Selection: 8
Motor Type: DC
Motor RPM: 650 – 1,100
Voltage: 240V ~ 50Hz
Wattage: 40W

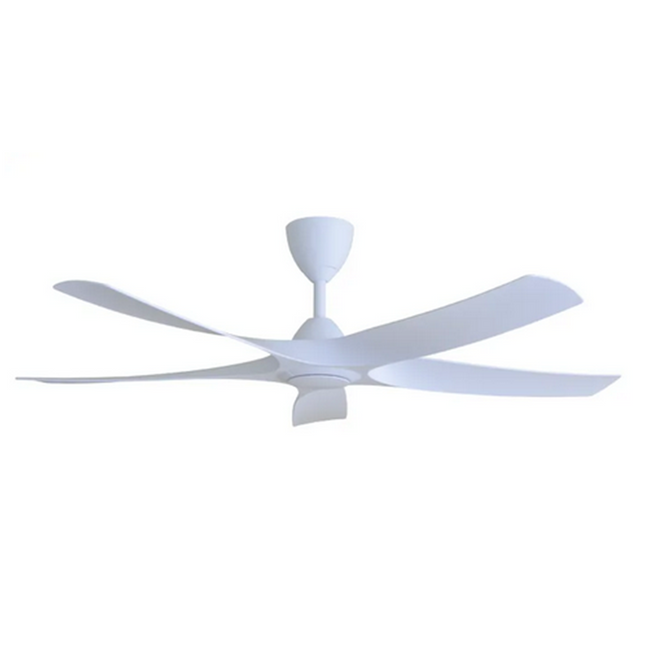

Model AXIS-5B/56
No. of Blades 5
Fan Width 56"
Fan Height 15" / 382mm
Downrod Length 8" / 203mm
Downrod Diameter 26.5mm
Blade Material ABS
Motor Type Ultra DC Motor
Wattage 5W - 55W
Motor RPM 90 - 205
Airflow CFM 10,326
Warranty: 1 Year General Warranty + 10 Years DC Motor Warranty
Model AXIS-5B/56
No. of Blades 5
Fan Width 56"
Fan Height 15" / 382mm
Downrod Length 8" / 203mm
Downrod Diameter 26.5mm
Blade Material ABS
Motor Type Ultra DC Motor
Wattage 5W - 55W
Motor RPM 90 - 205
Airflow CFM 10,326
Warranty: 1 Year General Warranty + 10 Years DC Motor Warranty

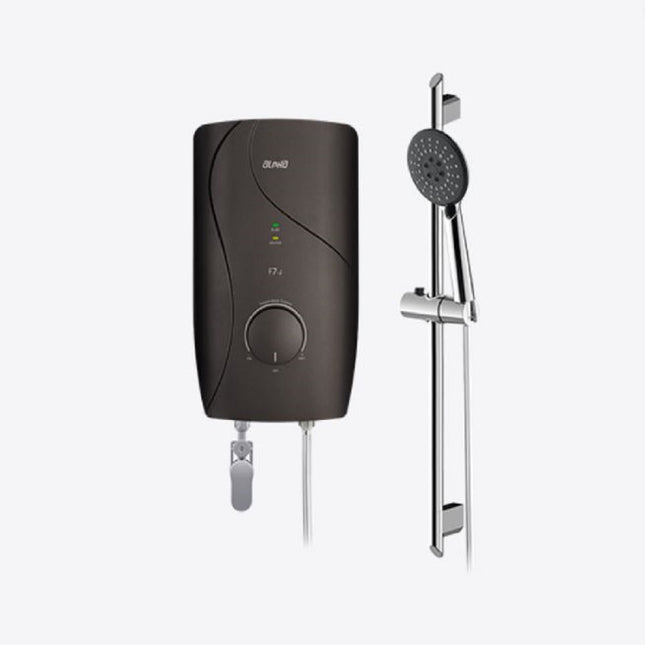

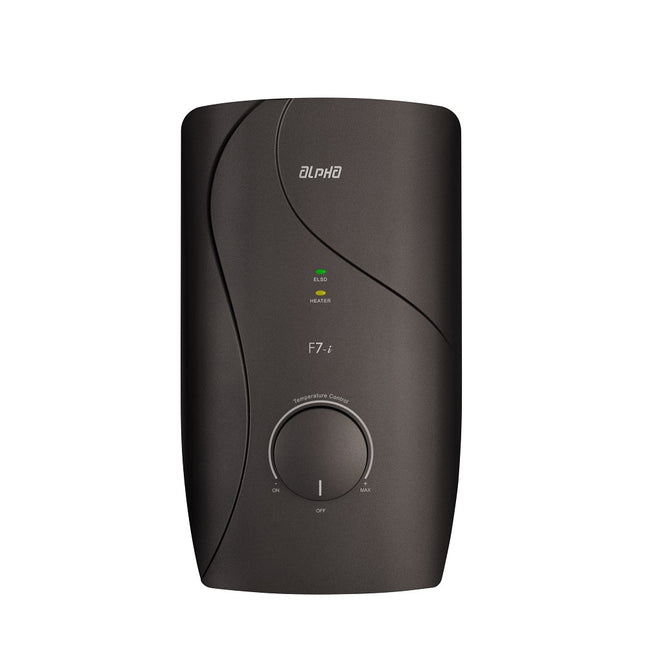

ALPHA SHOWER HEATER DC PUMP HAND SHOWER F7-I DK MOCHA
Enhances your showers with more power while optimizing energy and water savings.
Properties
Silent DC Pump
Stepless Temperature Control
Pump Speed Control
Pump Activator
55% Energy Saving ( Compare to AC Pump )
Product Usage
For water heating in both residential and commercial places.
Use with clean water only.
Product Tips
Please read the instruction manual thoroughly.
The installation must be performed by qualified technician.
Cautions
The unit must be grounded properly.
The installation and reparation must be performed by qualified technician.
Cut off the power and turn off valve before installation or reparation.
The installation must be performed by qualified technician.
Do not connect water inlet with other water heater system.
Do not modify or use with incompatible tools.
Key Features
Alpha SMART Auto Test
Automatically runs a self-test on all internal components before showers to detect electrical leakages and ensure utmost safety.
Line Fault Indicator
Detects and alerts of any false electrical connections with a red/ green indicator light.
55 Watt DC Pump
Enhances your showers with more power while maximizing energy and water saving.
Pump Activator
Amplifies water pressure to ensure voluminous showers even at low inlet flows.
Pump Control
Fine-tune your shower’s water pressure to your exact liking.
Dual Safety Thermal Protection
Automatically breaks off power supply if there is an abnormal rise in shower temperatures.
Tier 1: 55°C Auto Cut-offTier 2: 85°C Overheat Cut-out
Double Relay ELSD
Immediately cuts off both live and neutral current flows in the event of an electrical surge.
IP25 Splash Proof Casing
Protects your heater’s internal components from any water seepage.
Nylon Fibre Internal Construction
A strong and durable non-conductive material that provides insulation to your heater.
Accessories
HAND SHOWER HEAD
Lazada
Shopee
SHOWER HOSE
Lazada
Shopee
STOP VALVE
Lazada
Shopee
Specification
Technical Specification
Model

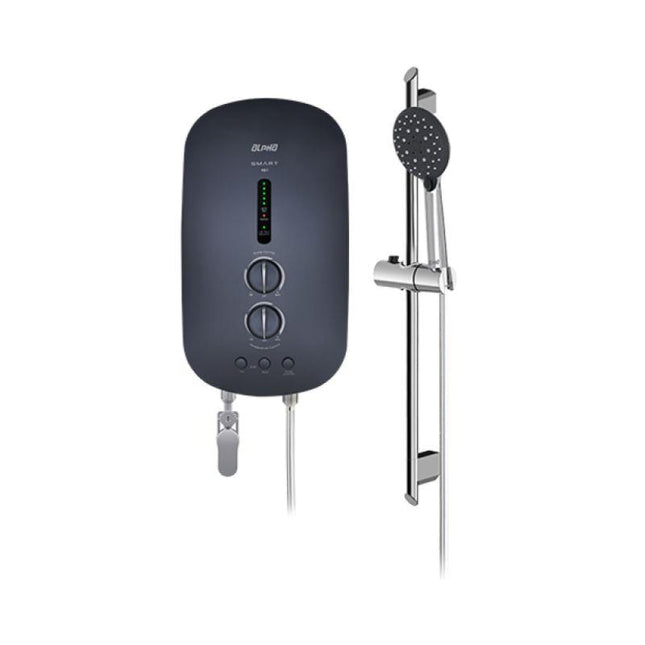

SMART 18i
Colours Available
Matt Black, Metal Black, Misty Silver, Ivory White
Pump Type
DC Pump
Pump Rating
55W
Noise Level
< 40dB
Heater Power Rating
3.8kW, 240V ~ 50 Hz
Water Connection
15mm (1/2” BSP), Single Point System
Operating Condition
Open Outlet
Protection Against Electric Shock
Class 1
Water Temperature Control
Electronics
Degree of Protection
IP25
Minimum Flow Rate
2 Liters / Minute
Minimum Pressure
20kPa (0.2 bar / 2.9 psi)
Maximum Inlet Pressure
0.38 MPa (3.8 bar / 55psi)
Heater Dimension
230mm (W) x 413.50mm (L) x 91.30mm (H)
Nett Weight
2.0 kg
Key Features
Alpha SMART Auto Test
Automatically runs a self-test on all internal components before showers to detect electrical leakages and ensure utmost safety.
Line Fault Indicator
Detects and alerts of any false electrical connections with a red/ green indicator light.
55 Watt DC Pump
Enhances your showers with more power while maximizing energy and water saving.
Pump Activator
Amplifies water pressure to ensure voluminous showers even at low inlet flows.
Pump Control
Fine-tune your shower’s water pressure to your exact liking.
Dual Safety Thermal Protection
Automatically breaks off power supply if there is an abnormal rise in shower temperatures.
Tier 1: 55°C Auto Cut-offTier 2: 85°C Overheat Cut-out
Double Relay ELSD
Immediately cuts off both live and neutral current flows in the event of an electrical surge.
IP25 Splash Proof Casing
Protects your heater’s internal components from any water seepage.
Nylon Fibre Internal Construction
A strong and durable non-conductive material that provides insulation to your heater
Key Features
Alpha SMART Auto Test
Automatically runs a self-test on all internal components before showers to detect electrical leakages and ensure utmost safety.
Line Fault Indicator
Detects and alerts of any false electrical connections with a red/ green indicator light.
55 Watt DC Pump
Enhances your showers with more power while maximizing energy and water saving.
Pump Activator
Amplifies water pressure to ensure voluminous showers even at low inlet flows.
Pump Control
Fine-tune your shower’s water pressure to your exact liking.
Dual Safety Thermal Protection
Automatically breaks off power supply if there is an abnormal rise in shower temperatures.
Tier 1: 55°C Auto Cut-offTier 2: 85°C Overheat Cut-out
Double Relay ELSD
Immediately cuts off both live and neutral current flows in the event of an electrical surge.
IP25 Splash Proof Casing
Protects your heater’s internal components from any water seepage.
Nylon Fibre Internal Construction
A strong and durable non-conductive material that provides insulation to your heater.
Specification
Technical Specification
Model

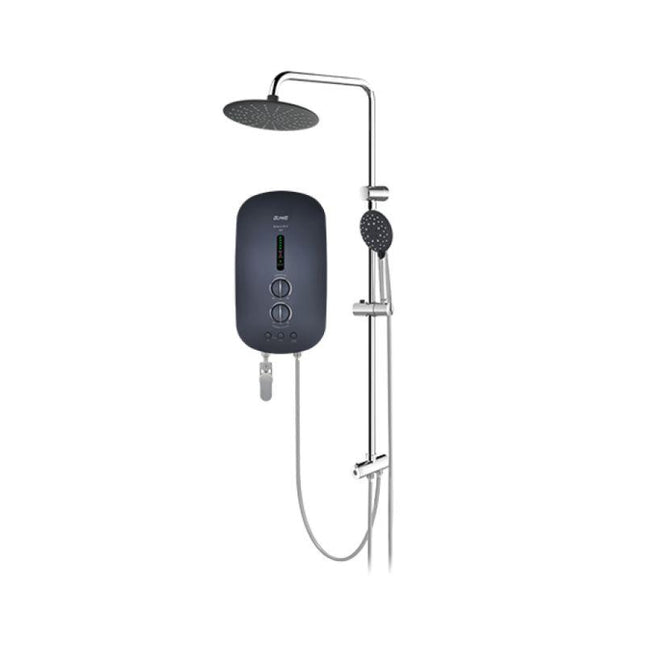

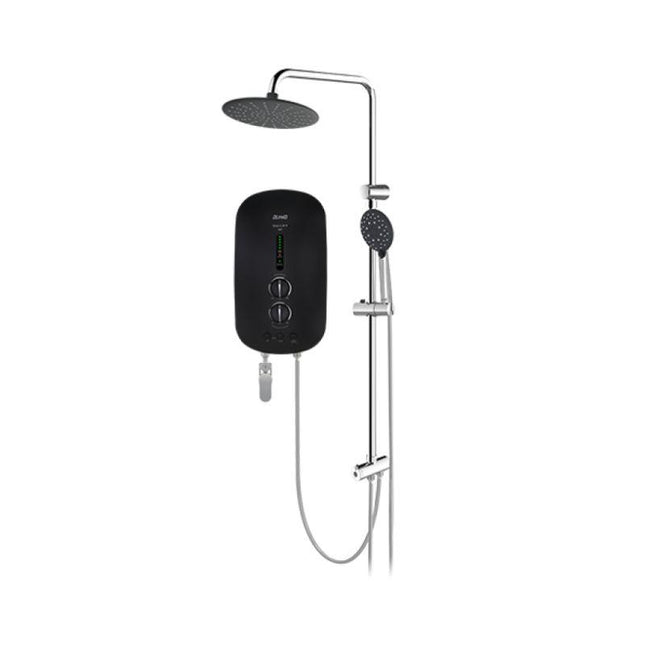

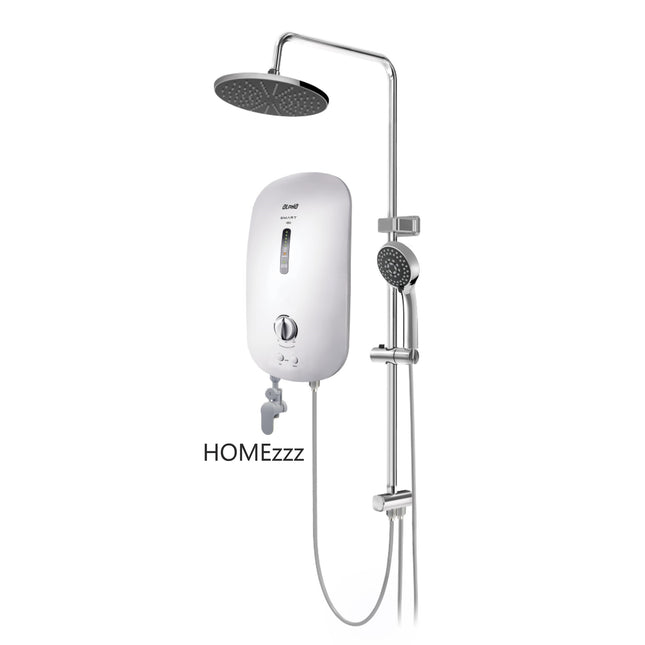

SMART 18i RainShower
Colours Available
Matt Black, Metal Black, Ivory White
Pump Type
DC Pump
Pump Rating
55W
Noise Level
<40dB
Heater Power Rating
3.8kW, 240V ~ 50 Hz
Water Connection
15mm (1/2” BSP), Single Point System
Operating Condition
Open Outlet
Protection Against Electric Shock
Class 1
Water Temperature Control
Electronics
Degree of Protection
IP25
Minimum Flow Rate
2 Liters / Minute
Minimum Pressure
20kPa (0.2 bar / 2.9 psi)
Maximum Inlet Pressure
0.38 MPa (3.8 bar / 55psi)
Heater Dimension
230mm (W) x 413.50mm (L) x 91.30mm (H)
Nett Weight
2.0 kg
Key Features
Alpha SMART Auto Test
Automatically runs a self-test on all internal components before showers to detect electrical leakages and ensure utmost safety.
Line Fault Indicator
Detects and alerts of any false electrical connections with a red/ green indicator light.
55 Watt DC Pump
Enhances your showers with more power while maximizing energy and water saving.
Pump Activator
Amplifies water pressure to ensure voluminous showers even at low inlet flows.
Pump Control
Fine-tune your shower’s water pressure to your exact liking.
Dual Safety Thermal Protection
Automatically breaks off power supply if there is an abnormal rise in shower temperatures.
Tier 1: 55°C Auto Cut-offTier 2: 85°C Overheat Cut-out
Double Relay ELSD
Immediately cuts off both live and neutral current flows in the event of an electrical surge.
IP25 Splash Proof Casing
Protects your heater’s internal components from any water seepage.
Nylon Fibre Internal Construction
A strong and durable non-conductive material that provides insulation to your heater.
