-Twin motor for powerful suction with standalone motor operation
-Heat tech auto cleaning function
-Suction power: 1800 m3/h
-4 speeds power
-Touch control
-3 meter aluminium hose
-Stainless steel wall cap
-3 meters aluminum hose (Hose dimension: 150mm(6″))
-Recommended installation height from gas hob: 400mm – 500mm
-Recommended installation height from electric hob: 300mm – 450mm
DESCRIPTION
Sleek and modern design with black tempered glass which makes it very easy to clean
Suction power: 1400 m3/h
Heat auto cleaning function
Exhaust / recirculation option
Twin carbon filter
Metal oil cup which is 5 times bigger than traditional size
LED lights
Recommended installation height from gas hob: 400mm ~ 500mm
Recommended installation height from electric hob: 300mm ~ 450mm
Model No: SZ-CH9090AC
Innovative TripleGuard Filters effectively filter up to 99%* of grease, ensuring a fresh and pristine cooking environment
Sleek and modern design that seamlessly integrates into any kitchen decor
Suction power: 1950 m3/h (with turbo boost)
Motion sensor technology
4 speeds power
Heat auto cleaning function
Metal oil cup which is 5 times bigger than traditional size
LED light
Recommended installation height from gas hob: 400mm ~ 500mm
Recommended installation height from electric hob: 300mm ~ 450mm
Chimney cover-1st Glass Chimney-2nd Metal Chimney
Stainless steel wall cap
3 meters aluminum hose (hose dimension: 180mm (7”))
Coring dimension at wall for installing wall cap: 150mm (6”)
Included: a connector will be provided to connect 180mm to 150mm for easy installation
Model No: SZ-CH9090AC
Key Features
Latest Angled Design – maximizes headroom and comfort while improving smoke capture efficiency
Innovative TripleGuard Filters – effectively filter up to 99%* of grease, ensuring a fresh and pristine cooking environment
1950 m3/h Suction Power + Turbo Boost – instantly removes smoke, perfect for heavy cooker
Motion Sensor Technology – operate without touching, just wave your hand to activate the hood or switch speeds easily, even with oily hands!
Heat Auto Cleaning Function – uses high-heat dissolves grease automatically, no dismantling, no manual cleaning, ensures long-lasting performance
Additional Practical Features
5x Larger Metal Oil Cup – reduces cleaning frequency
LED lighting – bright and even illumination, glare-free
Removable TripleGuard Filters – easily detach for quick cleaning
Installation Accessories Included
2 sets Washable TripleGuard Filters
Chimney Cover– 1st Glass Chimney– 2nd Metal Chimney
Stainless Steel Wall Cap
3 meters Aluminum Hose (hose dimension: 180mm (7”))
Ducting/Coring Size: 150mm = 6 inches (includes connector to adapt from 180mm to 150mm for easy installation)
Recommended Installation Height
From bottom of hood to your counter top– For Electric Hob: 300mm ~ 450mm– For Gas Hob: 400mm ~ 500mm
Optional Accessories
Charcoal Filter
Model No: SZ-CH9050AC (Auto Cleaning)
BLDC motor consumes less electricity with up to 1900pa
Noise level as low as 45 db
AI Grease Smart function – able to detect the level of grease and adjust its suction power accordingly
Suction power: 1950 m3/h (with turbo boost)
Heat auto cleaning function
Motion sensor technology
Metal oil cup which is 5 times bigger than traditional size
LED light
Recommended installation height from gas hob: 400mm ~ 500mm
Recommended installation height from electric hob: 300mm ~ 450mm
2 pcs Metal Chimney Cover
Stainless steel wall cap
3 meters aluminum hose (hose dimension: 180mm (7”))
Coring dimension at wall for installing wall cap: 150mm (6”)
Included: a connector will be provided to connect 180mm to 150mm for easy installation
Model No: SZ-CH9050AC (Auto Cleaning)
Key Features:
AI Grease Smart Function – able to detect the level of grease and adjust its suction power accordingly
1950 m3/h Suction Power + Turbo Boost – instantly removes smoke, prefect for heavy cooker
Motion Sensor Technology – operate without touching, just wave your hand to activate the hood or switch speeds easily, even with oily hands!
Ultra-Quiet Operation – as low as 45dB, enjoy conversation in the kitchen without disruption
Heat Auto Cleaning Function – uses high-heat dissolves grease automatically, no dismantling, no manual cleaning, ensures long-lasting performance
Equip with intelSync Technology – function ONLY available when pair with KARINO / TRINITY gas stove
Additional Practical Features
BLDC Motor – more energy saving, with up to 1900Pa
5x Larger Metal Oil Cup – reduces cleaning frequency
LED lighting – bright and even illumination, glare-free
Removable Metal Filter – easily detach for quick cleaning
Installation Accessories Included
1 pcs Washable Metal Filter
2 pcs Metal Chimney Cover
Stainless Steel Wall Cap
3 meters Aluminum Hose (hose dimension: 180mm (7”))
Ducting/Coring Size: 150mm = 6 inches (includes connector to adapt from 180mm to 150mm for easy installation)
Recommended Installation Height
From bottom of hood to your counter top– For Electric Hob: 300mm ~ 450mm– For Gas Hob: 400mm ~ 500mm
Model No: SZ-CH6860AC
Suction power: 1600 m3/h
Heat auto cleaning function
Exhaust / recirculation option
Twin Charcoal Filter
Metal oil cup which is 5 times bigger than traditional size
LED lights
Recommended installation height from gas hob: 400mm ~ 500mm
Recommended installation height from electric hob: 300mm ~ 450mm
2pcs Metal Chimney Cover
Model No: SZ-CH6860AC
Key Features
Latest Angled Design – maximizes headroom and comfort while improving smoke capture efficiency
1600 m3/h Suction Power – instantly removes smoke, perfect for medium to heavy cooker
Heat Auto Cleaning Function – uses high-heat dissolves grease automatically, no dismantling, no manual cleaning, ensures long-lasting performance
Additional Practical Features
5x Larger Metal Oil Cup – reduces cleaning frequency
LED lighting – bright and even illumination, glare-free
Installation Accessories Included
2 pcs Metal Chimney Cover
1 pcs Washable Metal Aluminum Filter
2 pcs Charcoal Filter (for recirculating system/ductless)
Recommended Installation Height
From bottom of hood to your counter top– For Electric Hob: 300mm ~ 450mm– For Gas Hob: 400mm ~ 500mm
Optional Accessories
3 meters aluminum hose (hose dimension: 150mm (6”))
Stainless Steel Wall Cap
Model No: SZ-CH6833AC
Water auto cleaning function
Suction power up to 1700 m3/h (with turbo boost)
Leveraging centrifugal force to remove grease
Easy extraction of grease
High-speed drying
Aluminum hose: 150mm (6″)
Recommended installation height from gas hob: 400mm ~ 500mm
Recommended installation height from electric hob: 300mm ~ 450mm
2pcs Metal Chimney Cover
Stainless steel wall cap
3 meters aluminum hose (hose dimension: 180mm (7”))
Coring dimension at wall for installing wall cap: 150mm (6”)
Included: a connector will be provided to connect 180mm to 150mm for easy installation
Model No: SZ-CH6833AC
Key Features
Latest Angled Design – maximizes headroom and comfort while improving smoke capture efficiency
1700 m3/h Suction Power + Turbo Boost – instantly removes smoke, perfect for medium to heavy cooker
Water Auto Cleaning Function – uses water spray and centrifugal force to break down and remove grease automatically. Delivers powerful self-cleaning with easy grease extraction
Additional Practical Features
Retractable Panel Design – panel slides inward during use for better smoke capture, retracts when off for a sleek, space-saving look
5x Larger Metal Oil Cup – reduces cleaning frequency
LED lighting – bright and even illumination, glare-free
Installation Accessories Included
2 pcs Metal Chimney Cover
Stainless Steel Wall Cap
3 meters Aluminum Hose (hose dimension: 180mm (7”))
Ducting/Coring Size: 150mm = 6 inches (includes connector to adapt from 180mm to 150mm for easy installation)
Recommended Installation Height
From bottom of hood to your counter top– For Electric Hob: 300mm ~ 450mm– For Gas Hob: 400mm ~ 500mm

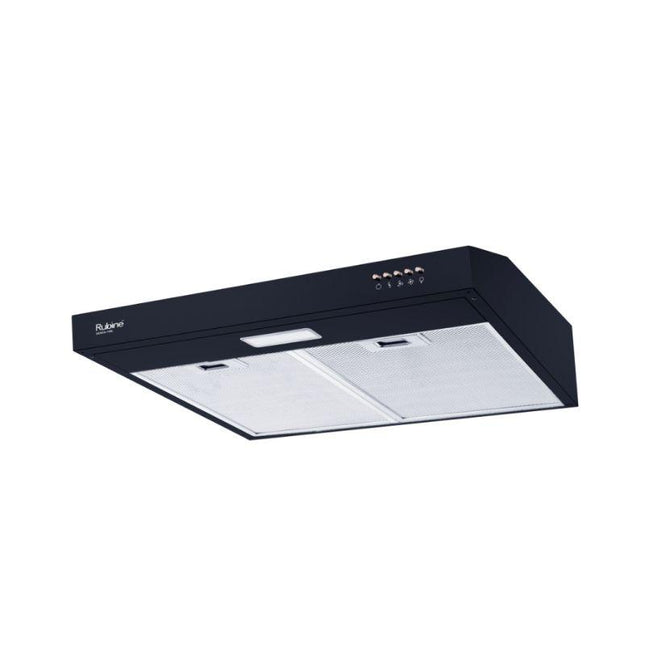

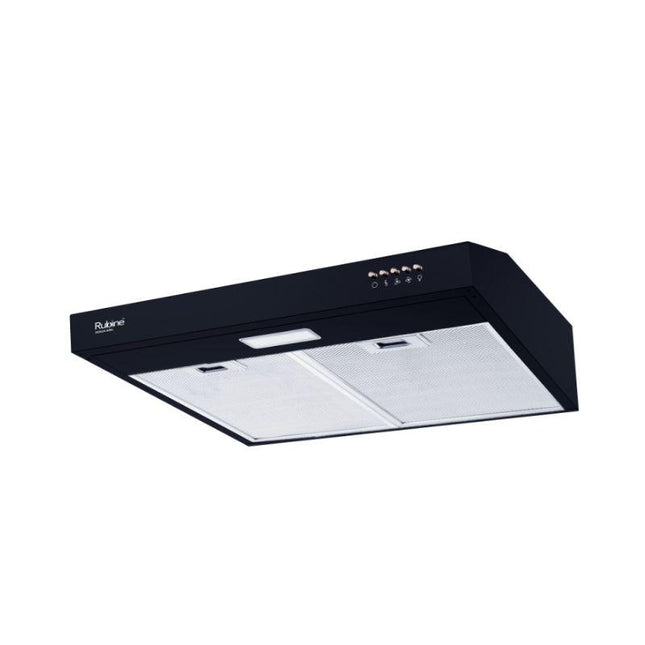

RUBINE RSHGENOA-60BL / RSHGENOA-75BL / RSHGENOA-90BL Tudung Pemasak Langsing
Jenis : Tudung Slim
Kuasa sedutan : 920 m3/jam
Jenis panel kawalan : Butang Tekan
Kelajuan Pengekstrakan: 3 kelajuan
Jenis penapis minyak : Penapis Gris
Cawan/minyak perangkap : tiada Penapis Arang : √
Lampu : 1 (LED)

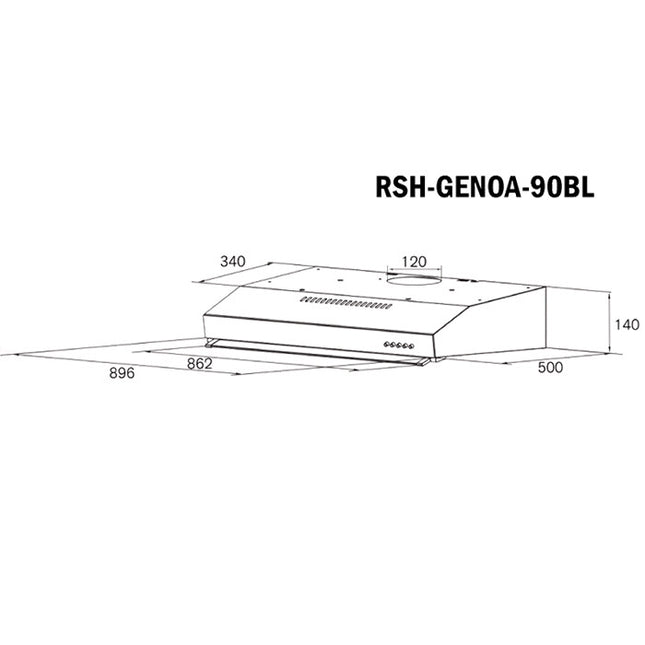

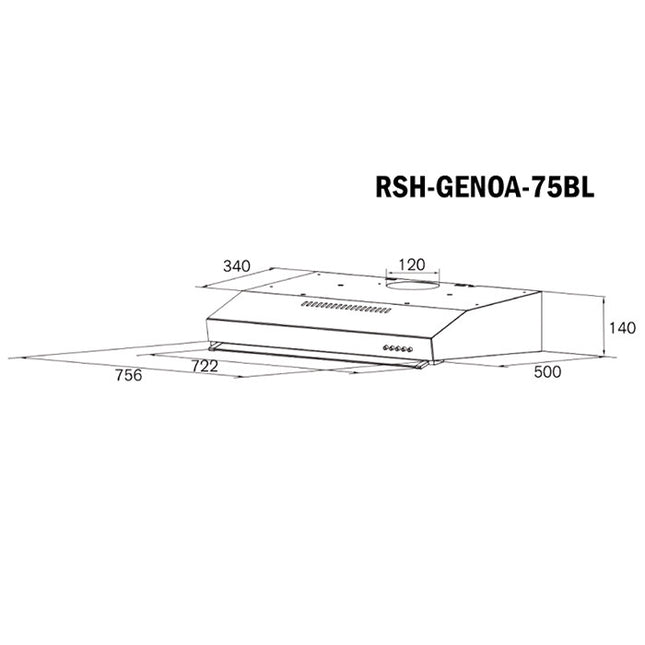

Dimensi Produk : (60cm) 596 x 500 x 140 RSH-GENOA-60BL
Hitam Matte Premium
Kawalan Butang Tekan Emas Champagne
Mentol Lampu LED
Sleek and modern design with black tempered glass which makes it very easy to clean
Heat auto cleaning function
Exhaust / recirculation option
Metal oil cup which is 5 times bigger than traditional size
Recommended installation height from gas hob: 400mm ~ 500mm
Recommended installation height from electric hob: 300mm ~ 450mm
