Temperature stability and thermal resistance.
Dynamic Power Control for a stable temperature.
OptiFlow pump for 50% noise reduction¹.
15 advanced safety features for safer showering.
Designed with 63% recycled plastic on product¹.
AntiBac Plus shower head with five spray settings.
Made with 63% recycled plastic on product¹.
Temperature stability and thermal resistance.
OptiFlow pump for 50% noise reduction¹.
15 advanced safety features for safer showering.
AntibacPlus, 3-step shower head with Rain shower.
Specifications :
Series : Flusso
Color : Modern White
Power Rating : 3.8kW 240V 50Hz
Min. Water Pressure : 0.2 bar
Min. Water Flow Rate : 1.25 Litre/min
Inlet/Outlet Water Connector : ø 15mm (1/2" BSP)
Temperature Control : Stepless Electronic
Product Dimension (WxDXH mm) : 227 x 75 x 375
Non Pump
With Multi-angle Accessories
Recognition : ST,SIRIM & IEC
1 Years General Warranty
7 Years Warranty on Heating Element
10 Year Warranty on Anti-Tank Leakage
Rated Power : 3.6 kW Power Supply : 240 V , 50 Hz Protects against fire & electrical hazards with 9 safety features Protects against bacteria with Ag+ Crystal Material Spa-like shower with U-Mode comfortable temperatures Pre-set personalised profiles with U-Memory Gentle & comfortable water teXture with 3-way shower head
Your Everyday Shower Clean & Worry-free
Leave your worries out of the bathroom. Panasonic U Series is built with 9 safety features that help to prevent electric shocks, fire & burn. The shower panel is water-splash proof to protect the internal components, while the Ag+ Crystal Material prevents the growth of bacteria for a more carefree shower eXperience.
Protects against fire & electrical hazards
To ensure the utmost safety, we developed technologies and designs that provide protection for numerous hazards such as water & heat resistance, as well as preventing fire, burn, and electric shock.
Protects against bacteria
Commonly touched areas especially shower head, one push on/off switch, filter body, power control knob are made with the Ag+ Crystal Material to protect against bacteria.
RelaX & Refresh with Comfortable Shower
Start and end the day with comfortable, personalised shower modes. Combined with soft and delicate water teXture, a calming and relaXing shower is ready for you.
Comfortable Water Temperature
The sudden change of temperature during a shower may cause discomfort. Select from 3 shower modes - warm up, cool down, hot & cool, that allow you to adapt to the water or surrounding temperature comfortably. The temperature and duration can also be customised to suit your preference.
Changes Water Temperature Gradually
Warm up : Lets you adapt comfortably at the beginning of the shower, without temperature shock.
Cool down : Feel refreshed and cool with our gradually-decreasing water temperature. This prevents your body from eXperiencing hot flashes after a hot shower.
Hot & Cool : Alternate between hot and cool showers to help improve blood circulation and induce relaXation.
Switches Between Personalised Profiles Easily
Set personalised profiles with U-Memory for you and your family. Quickly switches between profiles of preferred water temperature and water teXture with just a touch of a button. Perfect for families who share a shower at home.
Pre-set Your Personalised Settings
Saves your favourite shower settings easily, such as:
Shower Temperature : Select any temperature at a 1C increment
U Mode : Select cool down, warm up or hot & cool modes
Pump : Turn the pump on / off for preferred water pressure
Basic Specification
PUMP/ NO PUMP: DC Pump
TYPE: LCD type
Power Supply: 240 V, 50 Hz
Rated Power: 3.6 kW
Water Pressure Minimum: 0.05 kgf/cm
Water Pressure MaXimum: 3.87 kgf/cm
Dimensions (h X w X d) mm: 385 X 210 X 78
Main Unit Weight (kg): 2.8 kg
Body Colour: Dark Metallic Navy
Standard Regulation: SURUHANJAYA TENAGA (Safety)
ELB indication method: "SAFE" word on LCD screen
Water Stop System: One Push On/Off Switch
9 Safety Features
1. Water Splash Prood Case Cover: IEC 60529 (IP2X)
2. Durable Copper Heater Unit: Yes
3. On Push On/Off Switch: Yes
4. Insulated Structure: Yes. IEC 60529 (IP2X)
5. Built-in Earth Leakage Breaker (ELB): Yes
6. Water Flow Sensor: Yes
7. Non-flammable Material Cover: Yes
8. Manual Reset Thermostat: Yes
9. Auto Thermal Cut-off: 55C
Comfort Features
U-memory: Yes
U-mode: Yes (Warm Up, Cool Down, Hot & Cool Modes)
On/Off Pump function: Yes
Ag+ Antibacterial material: Yes
3-way Shower: Normal, Wide, Spot
Key Features
Alpha SMART Auto Test
Automatically runs a self-test on all internal components before showers to detect electrical leakages and ensure utmost safety.
Line Fault Indicator
Detects and alerts of any false electrical connections with a red/ green indicator light.
55 Watt DC Pump
Enhances your showers with more power while maximizing energy and water saving.
Pump Activator
Amplifies water pressure to ensure voluminous showers even at low inlet flows.
Pump Control
Fine-tune your shower’s water pressure to your exact liking.
Dual Safety Thermal Protection
Automatically breaks off power supply if there is an abnormal rise in shower temperatures.
Tier 1: 55°C Auto Cut-offTier 2: 85°C Overheat Cut-out
Double Relay ELSD
Immediately cuts off both live and neutral current flows in the event of an electrical surge.
IP25 Splash Proof Casing
Protects your heater’s internal components from any water seepage.
Nylon Fibre Internal Construction
A strong and durable non-conductive material that provides insulation to your heater.
Accessories
HAND SHOWER HEAD
Lazada
Shopee
SHOWER HOSE
Lazada
Shopee
STOP VALVE
Lazada
Shopee
Specification
Technical Specification
Model
SMART 18i
Colours Available
Matt Black, Metal Black, Misty Silver, Ivory White
Pump Type
DC Pump
Pump Rating
55W
Noise Level
< 40dB
Heater Power Rating
3.8kW, 240V ~ 50 Hz
Water Connection
15mm (1/2” BSP), Single Point System
Operating Condition
Open Outlet
Protection Against Electric Shock
Class 1
Water Temperature Control
Electronics
Degree of Protection
IP25
Minimum Flow Rate
2 Liters / Minute
Minimum Pressure
20kPa (0.2 bar / 2.9 psi)
Maximum Inlet Pressure
0.38 MPa (3.8 bar / 55psi)
Heater Dimension
230mm (W) x 413.50mm (L) x 91.30mm (H)
Nett Weight
2.0 kg
Key Features
Alpha SMART Auto Test
Automatically runs a self-test on all internal components before showers to detect electrical leakages and ensure utmost safety.
Line Fault Indicator
Detects and alerts of any false electrical connections with a red/ green indicator light.
55 Watt DC Pump
Enhances your showers with more power while maximizing energy and water saving.
Pump Activator
Amplifies water pressure to ensure voluminous showers even at low inlet flows.
Pump Control
Fine-tune your shower’s water pressure to your exact liking.
Dual Safety Thermal Protection
Automatically breaks off power supply if there is an abnormal rise in shower temperatures.
Tier 1: 55°C Auto Cut-offTier 2: 85°C Overheat Cut-out
Double Relay ELSD
Immediately cuts off both live and neutral current flows in the event of an electrical surge.
IP25 Splash Proof Casing
Protects your heater’s internal components from any water seepage.
Nylon Fibre Internal Construction
A strong and durable non-conductive material that provides insulation to your heater.
Key Features
4.5kW Super power
Enhanced heater performance for fast water heating.
Canvas Shine Texture
Utilising 3-layer etching technology and detailed hue matching, the heater bodies a stunning shine texture that mimics the ridges of canvas fabric.
Specification
Technical Specification
Model
WES7 BASIC
Colours Available
Blue Linen, Gold Cotton, White Chiffon, Black Canvas
Pump Type
DC Pump
Pump Rating
55W
Noise Level
<50dB
Heater Power Rating
4.5kW, 240V ~ 50Hz
Water Connection
15mm (1/2" BSP), Single Point System
Operating Condition
Open Outlet
Protection Against Electric Shock
Class 1
Water Temperature Control
Electronics
Degree of Protection
IP25
Minimum Flow Rate
2 Liters / Minute
Minimum Pressure
20kPa (0.2 bar / 2.9 psi)
Maximum Inlet Pressure
0.38MPa (3.8bar/55psi)
Heater Dimension
245mm (W) x 326mm (L) x 85mm (H)
Nett Weight
1.8kg
Power: 4200W
Dual Copper Heating Tube
DC Inverter Silent Pump
Shock Proof
Bubble Elimination Technology
Solid Structure Tank
4D AI Thermostat System
Extra Hot
Anti-bacterial Technology
Multi-functional Shower Head
Accurate Temperature Display
Minimum Inlet Pressure (MPa/kPa/bar): 0.03/30/0.3
MaximumInlet Pressure (MPa/kPa/bar): 0.3/300/3
Minimum Flow Rate: 1.5L / min
Product Dimension (WxDxH): 230 x 81 x 380 (mm)
Product Weight: 2.1kg
2 Years General Warranty
6 Years Heating Element
5 Years DC Inverter Silent Pump

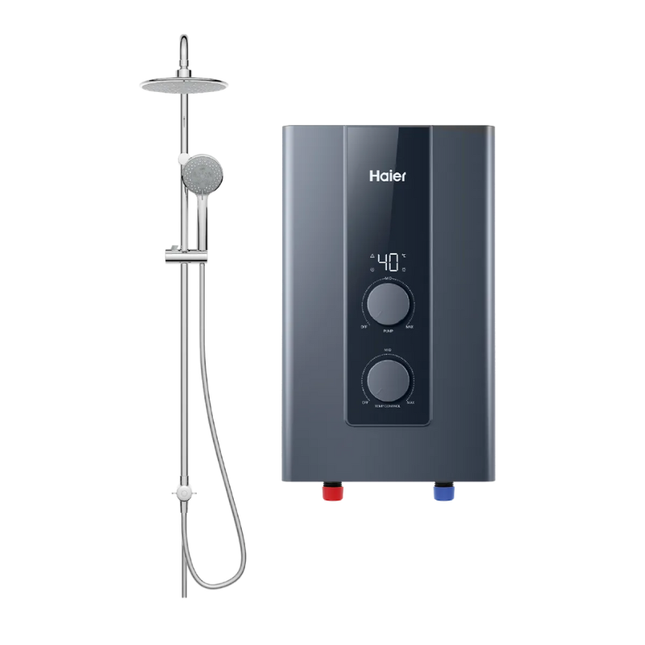

Model: Haier DC Inverter Silent Pump Rain Shower Water Heater EI42E-FP3B(MY) (Navy Blue)
