Description

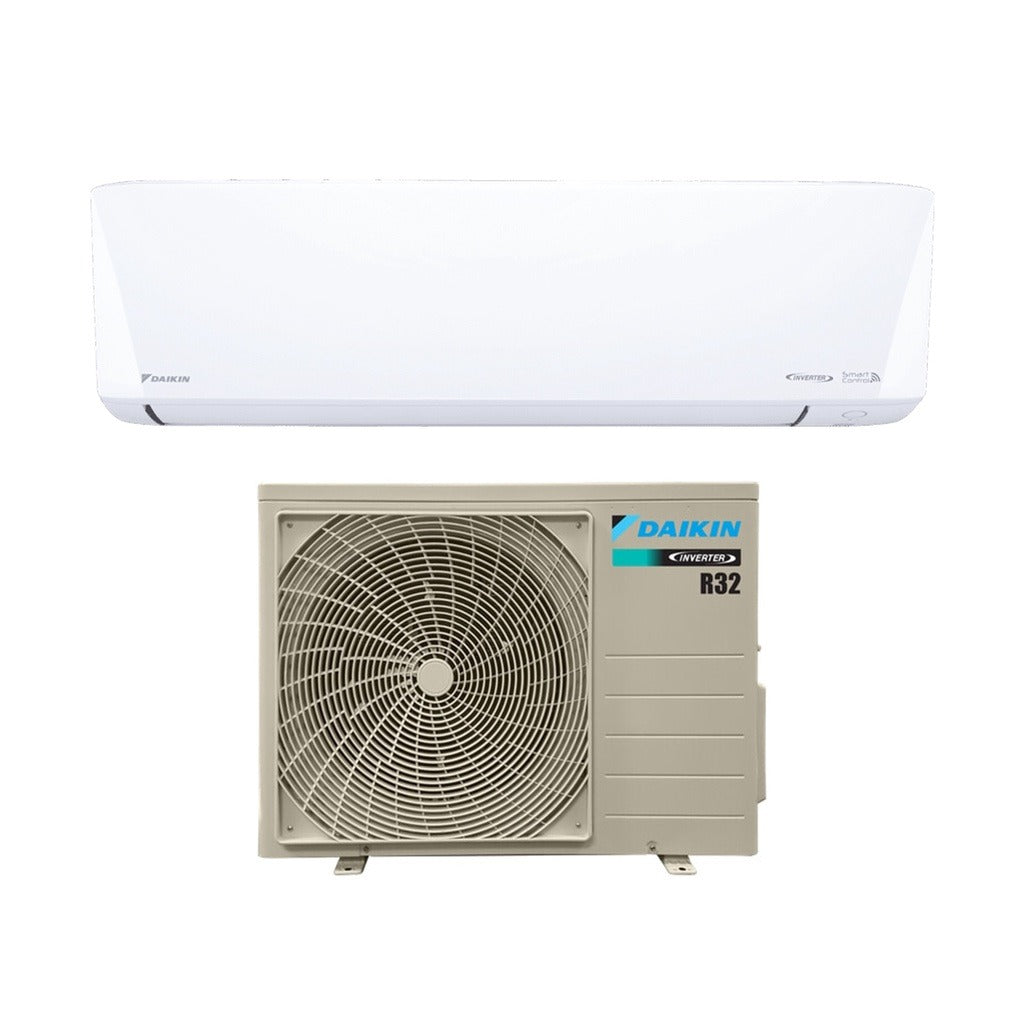

Daikin FTKU28BV1MF 1.0 HP Wall Mounted Deluxe Inverter Air-conditioner with Built-in Wifi Control & 3D Airflow
Specifications:
Model name
Indoor unit: FTKU28BV1MF
Outdoor unit: RKU28BV1M
Capacity Rated (Min - Max):
kW : 2.84 (1.08 - 3.40)
Btu/h: 9,700 (3,700 - 11,600)
Power supply : 1 phase, 220-240 V, 50 Hz (Power to indoor)
Running current Rated (Min - Max) A : 3.37
Power consumption Rated (Min - Max) W : 740 (260 - 1,200)
CSPF (Wh/Wh): 5.60
Energy rating: 5 star
Heat insulation: Both liquid and gas piping

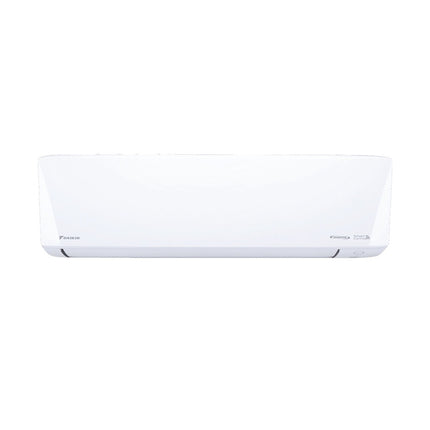

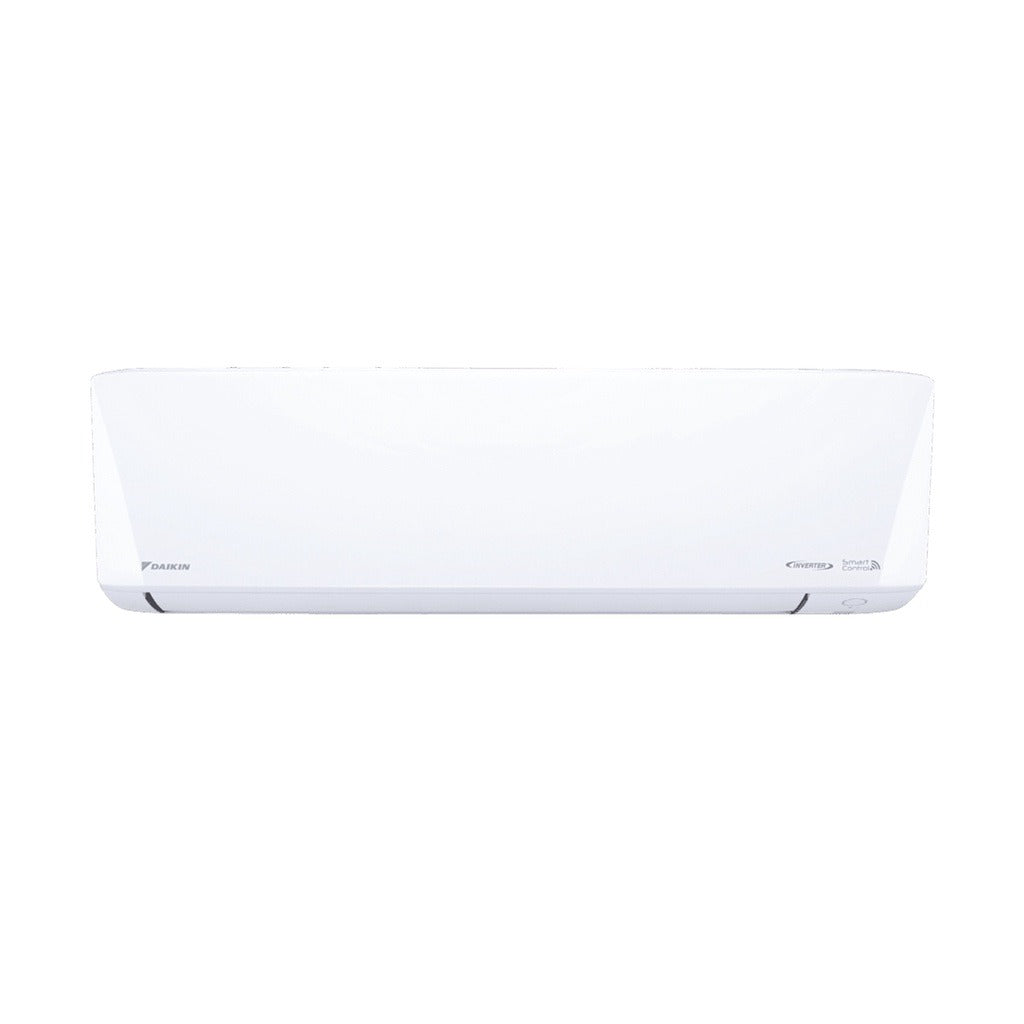

Indoor unit
Airflow rate (cfm): 380
Sound pressure levels - H / L / SL dB(A): 38 / 25 / 19
Dimensions (H x W x D): 288 x 770 x 234mm
Unit weight(kg): 9.0

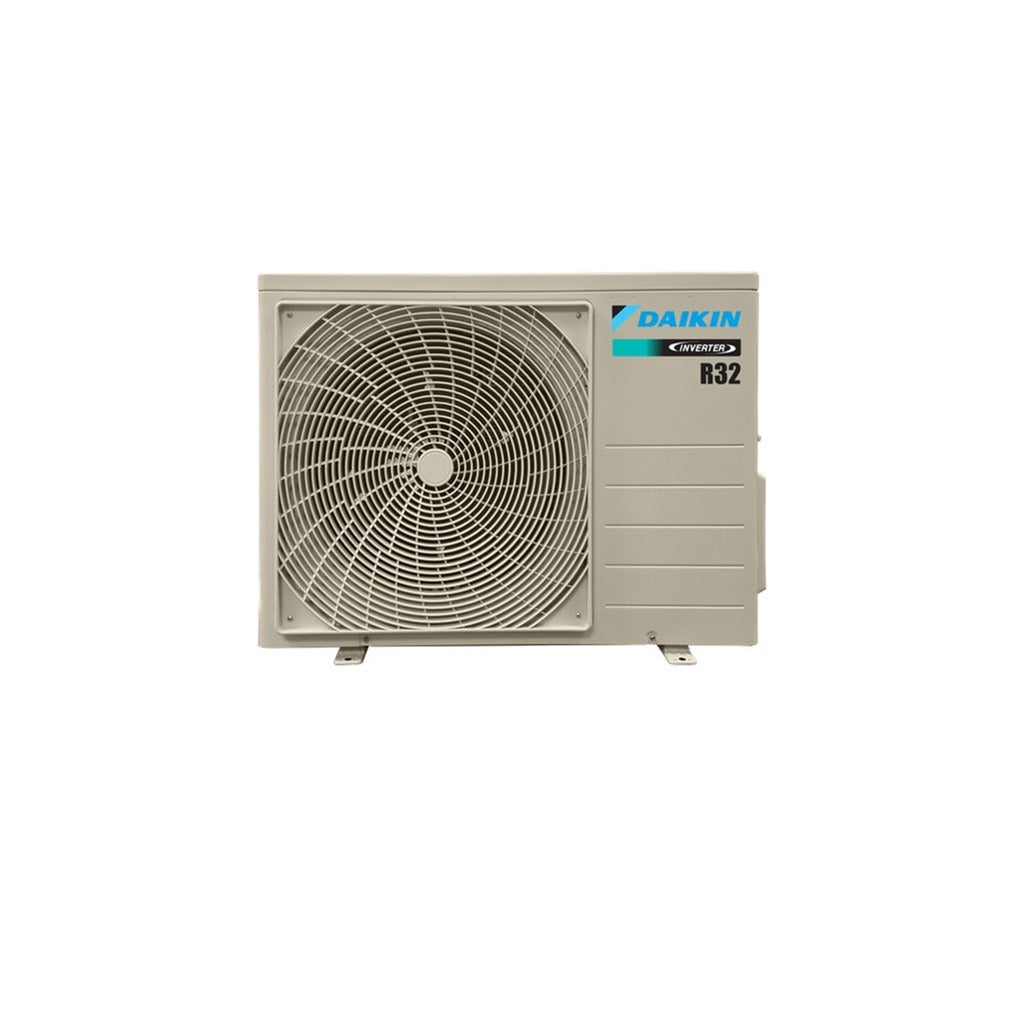

Outdoor unit
Refrigerant: R32
Sound pressure levels dB(A): 45
Dimensions (H x W x D): 550 x 658 x 273mm
Unit weight(kg): 24
Piping connection:
Liquid(mm):ø6.35
Gas(mm):ø9.52
Chargeless pipe length (m):7.5
Maximum pipe length (m):20
Maximum height difference (m):15
Heat Exchanger Type: Hydrophillic Blue Fin
Daikin FTKU35BV1MF 1.5 HP Wall Mounted Deluxe Inverter Air-conditioner with Built-in Wifi Control & 3D Airflow
Specifications:
Model name
Indoor unit: FTKU35BV1MF
Outdoor unit: RKU35BV1M
Capacity Rated (Min - Max):
kW : 3.55 (1.17 - 3.81)
Btu/h: 12,100(4,000 - 13,000)
Power supply : 1 phase, 220-240 V, 50 Hz (Power to indoor)
Running current Rated (Min - Max) A : 4.38
Power consumption Rated (Min - Max) W : 980 (280 - 1,250)
CSPF (Wh/Wh): 5.60
Energy rating: 5 star
Heat insulation: Both liquid and gas piping
Indoor unit
Airflow rate (cfm): 400
Sound pressure levels - H / L / SL dB(A): 39 / 26 / 21
Dimensions (H x W x D): 288 x 770 x 234mm
Unit weight(kg): 9.0
Outdoor unit
Refrigerant: R32
Sound pressure levels dB(A): 46
Dimensions (H x W x D): 550 x 658 x 273mm
Unit weight(kg): 26
Piping connection:
Liquid(mm):ø6.35
Gas(mm):ø9.52
Chargeless pipe length (m):7.5
Maximum pipe length (m):20
Maximum height difference (m):15
Heat Exchanger Type: Hydrophillic Blue Fin
Daikin FTKU50BV1MF 2.0 HP Wall Mounted Deluxe Inverter Air-conditioner with Built-in Wifi Control & 3D Airflow
Specifications:
Model name
Indoor unit: FTKU50BV1MF
Outdoor unit: RKU50BV1M
Capacity Rated (Min - Max):
kW : 5.57 (1.76 - 6.21)
Btu/h: 19,000 (6,000 - 21,200)
Power supply : 1 phase, 220-240 V, 50 Hz (Power to indoor)
Running current Rated (Min - Max) A : 6.99
Power consumption Rated (Min - Max) W : 1,590 (420 - 2,200)
CSPF (Wh/Wh): 5.60
Energy rating: 5 star
Heat insulation: Both liquid and gas piping
Indoor unit
Airflow rate (cfm): 430
Sound pressure levels - H / L / SL dB(A): 42 / 32 / 30
Dimensions (H x W x D): 288 x 770 x 234mm
Unit weight(kg): 9.5
Outdoor unit
Refrigerant: R32
Sound pressure levels dB(A): 49
Dimensions (H x W x D): 615 x 845 x 300mm
Unit weight(kg): 37
Piping connection:
Liquid(mm):ø6.35
Gas(mm):ø12.70
Chargeless pipe length (m):7.5
Maximum pipe length (m):30
Maximum height difference (m):20
Heat Exchanger Type: Hydrophillic Blue Fin
Features:
Energy Saving with ECO+ Mode
An intelligent feature that ensures optimum energy consumption while fullfilling basic human comfort needs. Once activated, set temperature will be adjusted automatically to an eco-friendly level while limiting the maximum power consumption.
Comfortable Airflow by 3D Airflow
This function combines vertical and horizontal auto swing to provide excellent air modulation in your room.
It generates a rectangular motion of air throughout the room with improved motion of air draft coverage for an even faster and efficientcooling reach.
Gin-Ion Blue Filter
This filter is treated with a positively charged silver ion, which efficiently draws viruses onto its surface and decomposes up to 99.9% in 2 hours. On top of that, this filter can deactivate bacteria and inhibit fungal growth on its surface to improve the quality of indoor air for a healthier lifestyle. The filter delivers consistent performance for around a year if filter is cleaned once every 2 weeks.
Durable PCB (PCB Voltage Shield)
Newly designed printed circuit board (PCB) for higher voltage surge tolerance. This PCB can easily handle large variations of voltage (130V-415V) therefore ensuring longer life span.
GO DAIKIN
This built-in network adaptor (AWM61A01) and the app turn a smartphone into a remote controller that can be used inside or outside the home. Together, they help to not only save energy and maintain comfort but also eliminate any worries of forgetting to turn off your air conditioner! (Certain app functions are optional.)
Anti-Corrosion Treatment of Outdoor Heat Exchanger Fins
The outdoor unit’s heat exchanger fins are processed using a special anti-corrosion treatment. The surface is covered with a thin acrylic resin layer to enhance the fins’ resistance to salt corrosion. Higher Corrosion Resistance Gold Fin is available (Optional)
