Description
Model No: SZ-GS6852FL

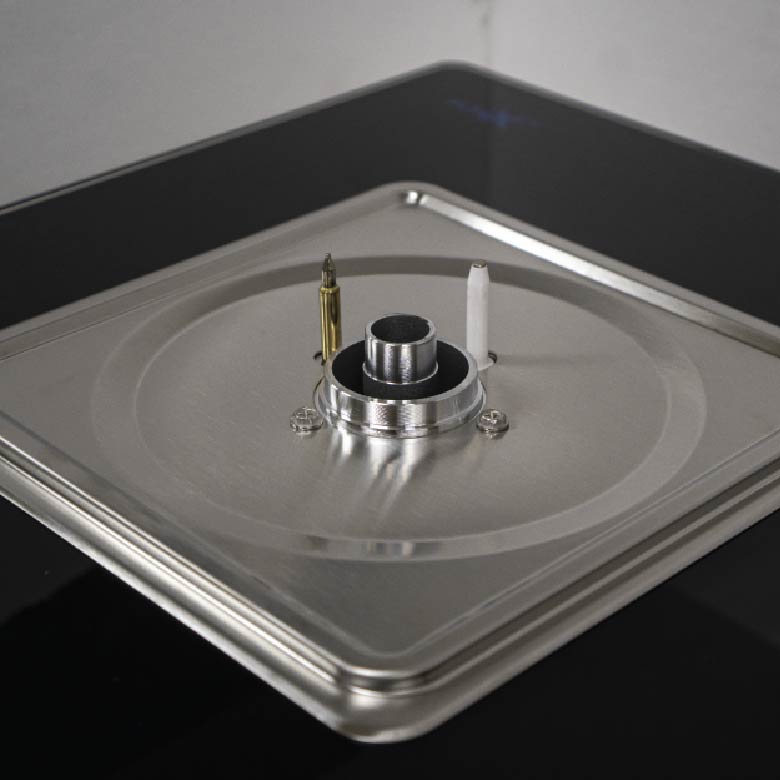

- Easy-Clean Sealed Burner with Square Plate Base – no more mess under the burner
- 5.2kw/h Heat Intensity
- Safety Valve – prevents unintentional gas leaks
- 10 Seconds Auto Cut-Off – stops gas flow if the flame goes out unexpectedly due to wind or water (Flame Failure Device)
- Gloss-Finished Glass – heat resistance 8mm tempered glass FuteX, sleek and easy to clean
Additional Practical Features
- Battery Operated Auto-Ignition
-
Flexible Base Design – can fit in variety of built-in hole size
-
Removable Burner Cap – detaches easily for hassle-free cleaning

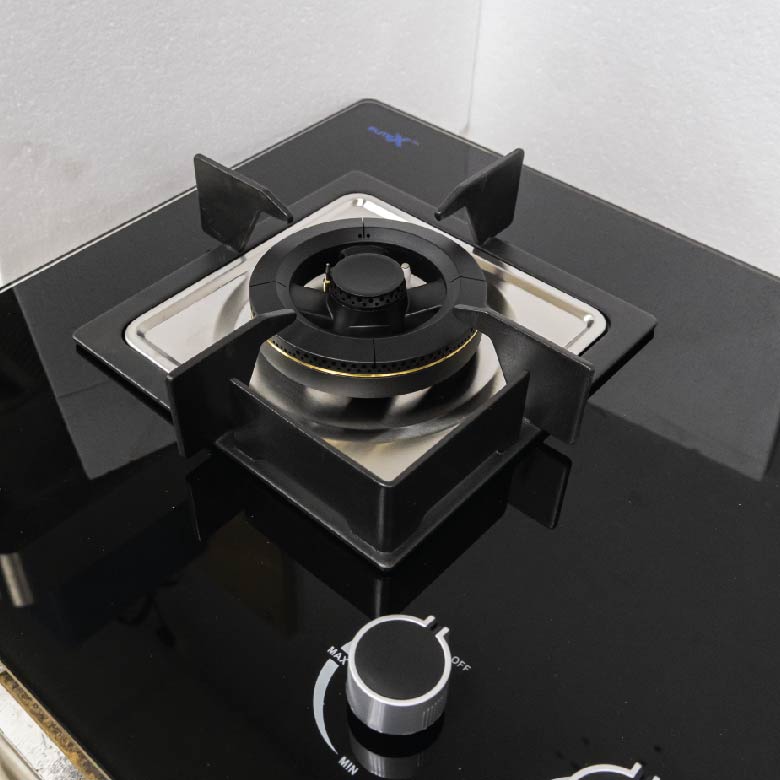

- Square Wok Rack Design
Installation & Compatibility
- Gas Type – LPG
- Gas Pressure – 2800 kPA
- Glass Size – 780mm (W) x 460mm (L)
- Built-in Hole Dimension

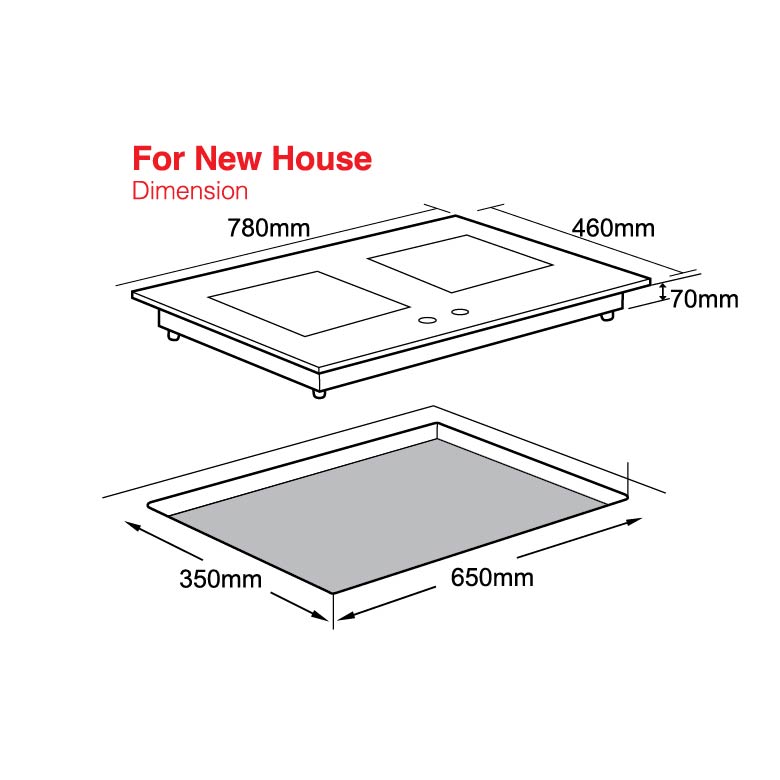

– For New House: 650mm (W) x 350mm (L)

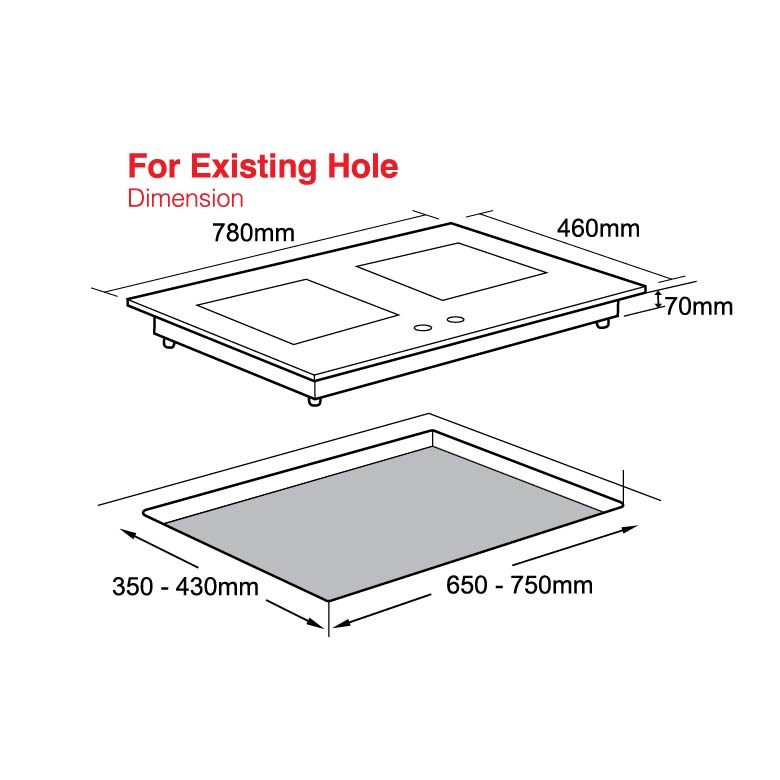

– For Existing Hole: 650-750mm (W) x 350-430mm (L)
- Installation Type – Free Standing or Built-In
CAUTION: Please ensure that the burner cap is placed securely and evenly to prevent any gas leaks and potential fire hazards.
Operation:
1) Pressed and hold the knob for 3 – 5 seconds before turning it.
2) After flame ignites, keep pressing the knob for 5 more seconds before releasing it to prevent the flame from going out.
Remark: When either of the knobs is pressed, both ignition pins will light up, indicating that the gas is ready to ignite. However, the gas supply for each burner is separate, so only the burner that has been turned on will ignite and produce a flame.
